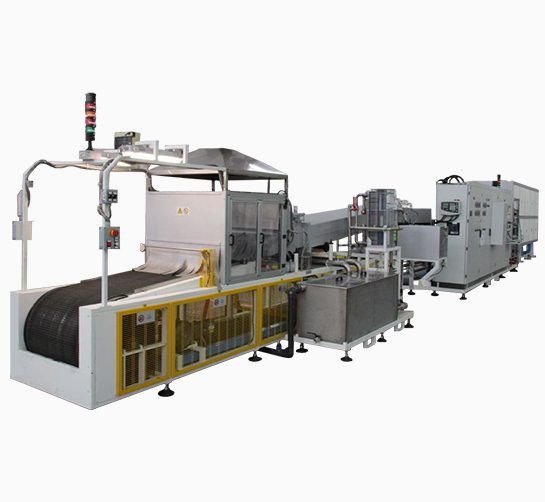

Inox Line 70-20-500-AI

Technical characteristics

Maximum working temperature: 1.100°C
Maximum furnace temperature: 1.120°C
Total length: 27218 mm
Heating zone length: 5000 mm
Conveyor belt width: 700 mm
Usable height: 200 mm
Adjustment zones: 4+4 SCR
Electric supply: 3 x 400 V 50 Hz
Installed power: 265 kW
Average consumption: 186 Kw
Safety and purging nitrogen consumption: 40÷50 Nm3/h in case of lack of electric energy or 10 minutes at start up and stop or in case of lack of hydrogen
Nitrogen working consumption: 8÷12 Nm3/h and 18 Nm3/h on the barriers
Hydrogen working consumption: 21 ÷ 50 Nm3/h
Working water consumption: 2,6 ÷ 3,5 m3/h at 20°C inlet
Hourly production: 300 kg/h nominal
Conveyor belt speed: up to 600 mm/min
Heat treatment: brazing and solution annealing
